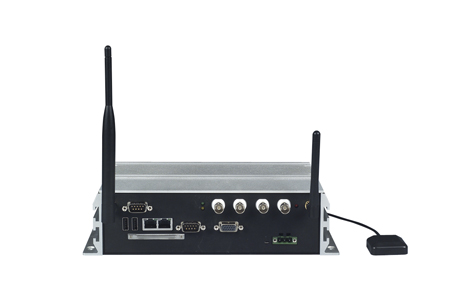

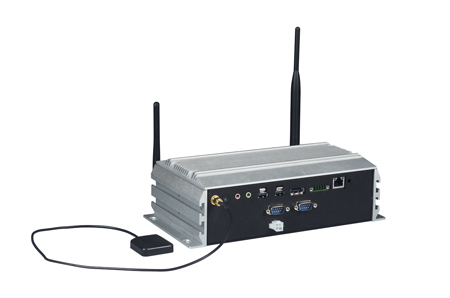

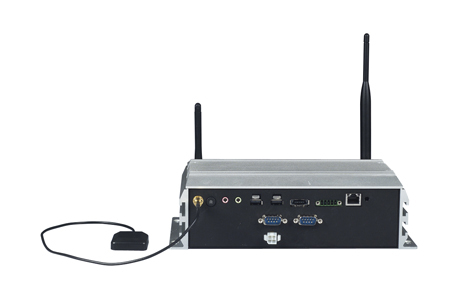

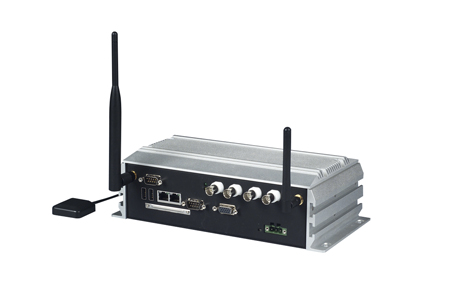

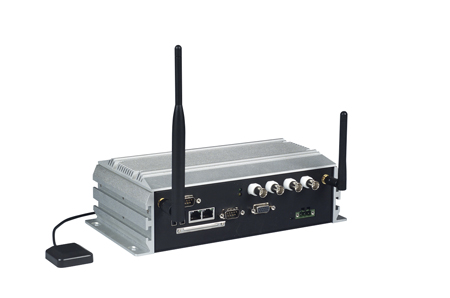

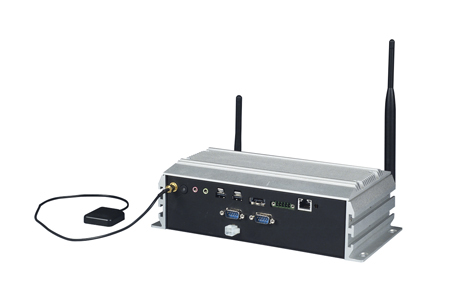

| ARK-VH200 |
| 高性能Intel?Atom?無風(fēng)扇移動(dòng)式DVR解決方案 |
| ARK-VH200A-D5A2E |
| Processor |
CPU |
Intel Atom™ D510 |
| Frequency |
1.66 GHz |
| Core Number |
2 |
| BIOS |
AMI EFI 16Mbit |
| Chipset |
Intel™ ICH8-M |
| Memory |
Technology |
DDR2 667MHz |
| Max. Capacity |
2 GB |
| ECC Support |
No |
| Socket |
1 x 200-pin SODIMM |
| Display |
Controller |
Intel™ ICH8-M |
| VGA |
1 |
| LCD (TTL/LVDS/eDP) |
LVDS |
| Expansion |
Slot Type |
2 |
| SIM Socket |
1 |
| Ethernet |
Controller |
GbE1: Intel 82574L, support wake on LAN GbE2: Intel 82574L, support wake on LAN |
| Speed |
10/ 100/ 1000 Mbps |
| Connector |
RJ45x2 |
| Audio |
Audio Interface |
HD Audio |
| CODEC |
Realtek ALC888, High Definition Audio (HD) |
| Connector |
2 (Line out, Mic-in) |
| Watchdog Timer |
WatchDog Timer |
Yes |
| Storage |
SATA |
1 x SATA |
| mSATA |
0 |
| CFast |
0 |
| CompactFlash |
CompactFlash Type I/II |
| I/O |
USB2.0 |
4 |
| COM Port |
2 (2 x RS232, 1 x RS232/ 422/ 485 optional) |
| GPS |
Yes |
| Video Input |
4CH Video Inputs, BNC |
| Power |
Power Type |
ATX, AT |
| Power Supply Voltage |
9 VDC ~ 32 VDC (for In Vehicle) |
| Power Adaptor |
AC to DC, DC19 V/3.42 A, 65 W (Optional) |
| Environment |
Operational Temperature |
-20 ~ 60° C (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-40~ 85° C |
| Vibration Resistance |
5 Grm |
| Shock Protection |
50 G |
| Physical |
Dimension (mm) |
260 x 134 x 77 |
| Weight |
3 kg (6.6 lb) |
| Construction |
Aluminum with fanless design |
| Mounting |
Desk/ wall mounting |
| Operating System |
Microsoft Windows |
Yes |
| Linux |
Yes |
| SUSIAccess |
Yes |
| Certification |
EMC |
CE, FCC |
| Safety Certifications |
UL, CCC, E13 |
|
