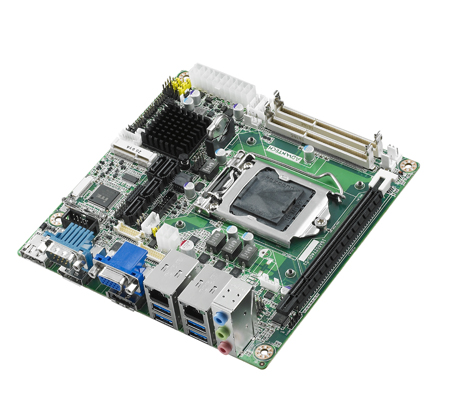

AIMB-274G2-00A1E |
AIMB-274L-00A1E |
| Form Factor |
Form Factor |
|
mini ITX |
| Processor |
CPU |
4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor |
4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor |
| CPU TDP |
95W/65W/45W/35W |
95W/65W/45W/35W |
| Frequency |
2.3 ~ 3.5 GHz |
2.3 ~ 3.5 GHz |
| Core Number |
2/4 |
2/4 |
| L3 Cache |
3 ~ 8MB |
3 ~ 8MB |
| BIOS |
AMI EFI 64 Mbit |
AMI EFI 64 Mbit |
| Chipset |
Intel Q87 |
Intel Q87 |
| Memory |
Technology |
DDR3 1333 / 1600 MHz |
DDR3 1333 / 1600 MHz |
| Max. Capacity |
16 GB |
16 GB |
| Socket |
2 x 204-pin SODIMM |
2 x 204-pin SODIMM |
| Display |
Controller |
Integrated Gfx Gen. 7.5 |
Integrated Gfx Gen. 7.5 |
| Graphic Engine |
DirectX11.1, Open GL 4.0 |
DirectX11.1, Open GL 4.0 |
| Graphic Memory |
Share with system memory up to 2 GB |
Share with system memory up to 2 GB |
| VGA |
Up to 1920 x 2000 |
Up to 1920 x 2000 |
| LCD (TTL/LVDS/eDP) |
LVDS: Single channel 24-bit / dual channel 48-bit LVDS up to 1920 x 1200. eDP: Up to 3840 x 2160 @ 60 Hz |
N/A |
| Video Interface |
CRT, LVDS, HDMI, eDP, Triple Display Ports |
CRT, LVDS, HDMI, eDP, Triple Display Ports |
| DDI (HDMI/DVI/DisplayPort) |
HDMI: Up to 4096 x 2304 @ 24 Hz / 2560 x 1600 @ 60 Hz. DP: Up to 3840 x 2160 @ 60 Hz. |
HDMI: Up to 4096 x 2304 @ 24 Hz / 2560 x 1600 @ 60 Hz. DP: Up to 3840 x 2160 @ 60 Hz. |
| Multiple Display |
Triple |
Triple |
| Expansion |
PCI Express x 16 |
1 |
1 |
| Slots |
PCIe x16, Mini-PCIe |
PCIe x16, Mini-PCIe |
| Slot Type |
1 x Full-size (Supports mSATA) 1 x Half-size |
1 (full size supports mSATA) |
| Mini PCI |
2 x Mini PCIe |
2 x Mini PCIe |
| Ethernet |
Controller |
LAN1: I217LM, LAN2: I211AT |
LAN1: I217LM |
| Speed |
10/ 100/ 1000 Mbps |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 2 |
RJ45 x 1 |
| Audio |
Audio Interface |
HD Audio |
HD Audio |
| CODEC |
Realtek ALC892, High Definition Audio (HD) |
Realtek ALC892, High Definition Audio (HD) |
| Connector |
3 (Mic-in, Line-out, Line-in) |
3 (Mic-in, Line-out, Line-in) |
| Watchdog Timer |
WatchDog Timer |
Yes |
Yes |
| Storage |
CFast |
0 |
0 |

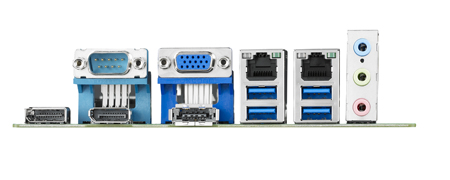

| I/O |
USB3.0 |
4 |
4 |
| USB2.0 |
6 |
6 |
| GPIO |
8-bit |
8-bit |
| COM Port |
2 (1 x RS232, 1 x RS232/ 422/ 485) |
2 (1 x RS232, 1 x RS232/ 422/ 485) |
| TPM |
Optional |
Optional |
| Power |
Power Type |
ATX |
ATX |
| Connector |
ATX20P |
ATX20P |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) |
0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature |
-40~ 85° C |
-40~ 85° C |
| Vibration Resistance |
3.5 Grms (non OP) |
3.5 Grms (non OP) |
| Physical |
Dimension (mm) |
170x 170 mm (without heatsink) |
170x 170 mm (without heatsink) |
| Weight |
1.04 kg (1.72 lb), weight of total package |
1.04 kg (1.72 lb), weight of total package |
| Construction |
with CPU cooler design |
with CPU cooler design |
| Operating System |
Microsoft Windows |
Yes |
Yes |
| Linux |
Yes |
Yes |
| SUSIAccess |
Yes |
Yes |
| Certification |
EMC |
CE, FCC |
CE, FCC |
