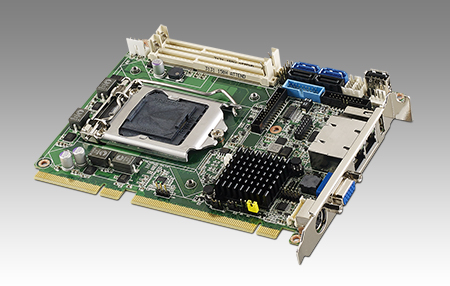

| PCE-3028G2-00A1E |
| Expansion Interface |
ISA |
- |
| Form Factor |
Form Factor |
PICMG 1.3 Half-Size SBC |
| Processor System |
CPU |
Intel 4th Core i3/i5/i7 |
| Chipset |
Intel H81 |
| CPU TDP |
Up to 65 W |
| Ethernet |
Controller |
LAN1: Intel I217V LAN2: Intel I211 |
| Processor System |
Frequency |
Up to 3.4 GHz |
| Core Number |
4 |
| L2 Cache |
- |
| L3 Cache |
8 MB |
| BIOS |
AMI 128Mbit SPI Flash |
| Integrated Graphics |
Yes |
| FSB |
- |
| Certification |
EMC |
CE, FCC |
| Display |
Controller |
Intel HD graphics Integrated |
| Display Interface |
VGA: Up to 1920 x 1200 DVI-D: Up to 1920 x 1200 |
| Multiple Display |
Dual |
| Environment |
Non-Operating Vibration |
2 Grms |
| Non-Operational Temperature |
-40~ 85° C and 60° C @ 95% RH Non-Condensing |
| Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Ethernet |
Connector |
2 x RJ45 |
| Speed |
10/100/1000 Mbps |
| Expansion Interface |
PCI |
- |
| PCI Express x 16 |
1 |
| PCI Express x 4 |
1 |
| I/O |
COM Port |
2 x RS232 |
| Floppy |
- |
| GPIO |
8-bit |
| IDE |
- |
| LPT |
1 |
| PS/2 Keyboard/Mouse |
1 |
| SATA |
2 x SATA III 2 x SATA II |
| System Fan |
- |
| USB2.0 |
8 |
| USB3.0 |
2 |
| Management Solution |
Out of band remote management |
- |
| Memory |
Capacity |
Up to 16 GB (8 GB per DIMM) |
| ECC Support |
- |
| Socket |
2 x 204-pin DDR3 SO-DIMM |
| Technology |
DDR3 1066/1333/1600 MHz |
| Physical Characteristics |
Dimensions (LxW) |
167.64 mm x 126.39 mm (6.6'' x 4.98'') |
| Weight |
0.33 kg |
| Power Requirement |
Current |
7.26A/ 1.06A/0.42A/0/0/0 |
| Voltage |
+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V |
| Rear I/O Interface |
COM |
- |
| Ethernet |
2 |
| PS/2 |
2 (1 x Keyboard, 1 x Mouse) |
| VGA |
1 |
| USB2.0 |
1 |
| WatchDog Timer |
Output |
System Reset |
