| PMC 模塊:MIC-3666 |

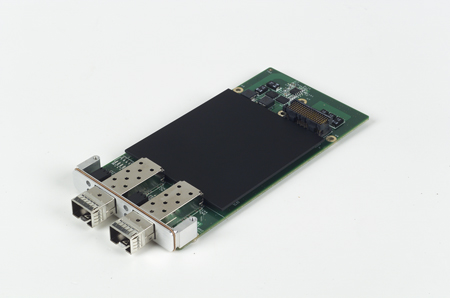

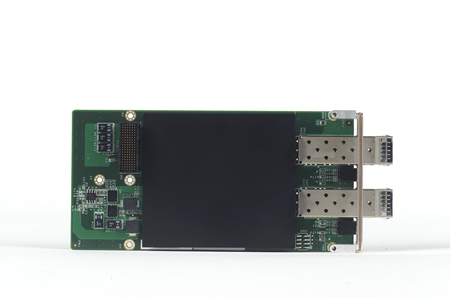

| Dual 10 Gigabit Ethernet XMC |
| MIC-3666-AE |
| Physical Specifications |
Dimentions (L x W) |
74 mm x 149 mm (2.9" x 5.78") |
| Power |
Power Consumption |
Management Power (3.3V) |
| Software |
Boot |
PXE, iSCSI |
| Environment |
Humidity |
0 ~ 95% (non-condensing) |
| Temperature |
-20 ~ 60° C (-4 ~ 140° F) |
| Controller |
Virtualization technologies |
VMDq, VMDc, SR-IOV |
| Controller |
Intel 82599ES dual 10GbE MAC/PHY |
| IP |
IPv4, IPv6 |
| Queues |
128RX, 128TX per port |
| Offloading |
TCP, UDP, SCTP, FCoE |
| Security acceleration |
IPSec (AES-128, 1024 SA’s) |
| IO |
SFP+ |
2 sites with support for presence detect, status and ID EEPROM |
| LEDs |
AMC FRU LEDs, Network Link, Activity and Speed |
| Software Development Kit |
Linux |
X86 Kernel 2.6.x |
| Compliance |
IEEE Std 1386.1-2001 PMC specification |
IEEE Std 1386.1-2001 PMC specification |
| Software Support |
Microsoft Windows |
Server2003, Server2008 |
| XMC Connectivity |
Connector |
P15 assembled, |
| Host interface |
PCIex8 gen.2 @ 5Gbps/lane |
|
