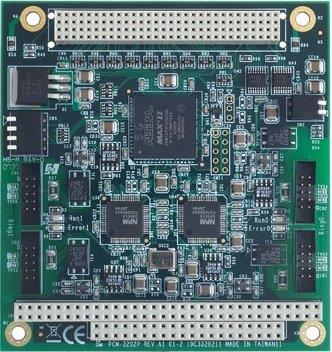

| PCM-3202P |
| 2-port AMONet RS-485 PC/104+ Master Card |
| PCM-3202P-AE |
| General |
Power Consumption |
5 VDC @ 0.5 A typical |
| Connector |
4 x 10-pin box header |
| Temperature (Operating) |
0 ~ 60°C (32 ~ 140°F) |
| Humidity |
5 ~ 95% RH, non-condensing (IEC 68-2-3) |
| Temperature (Storage) |
-20 ~ 85°C (-4 ~ 185°F) |
| Bus |
PC/104+ |
| Certifications |
CE, FCC class A |
| Dimensions |
96 x 90 mm (3.8" x 3.5") |
| AMONet RS-485 Motion Control |
AMONet RS-485 |
2 rings |
| Interface |
Half duplex RS-485 |
| Cable Type |
CAT5 UTP/STP Ethernet cable |
| Surge Protection |
10 kV |
| Transmission Speeds |
2.5, 5, 10, and 20 Mbps |
| Data Flow Control |
Automatic |
| Communication Distance (Max.) |
100 m @ 20 Mbps w/32 slave modules |
| Slave Module |
Digital I/O, Motion Control, Analog I/O |
|
